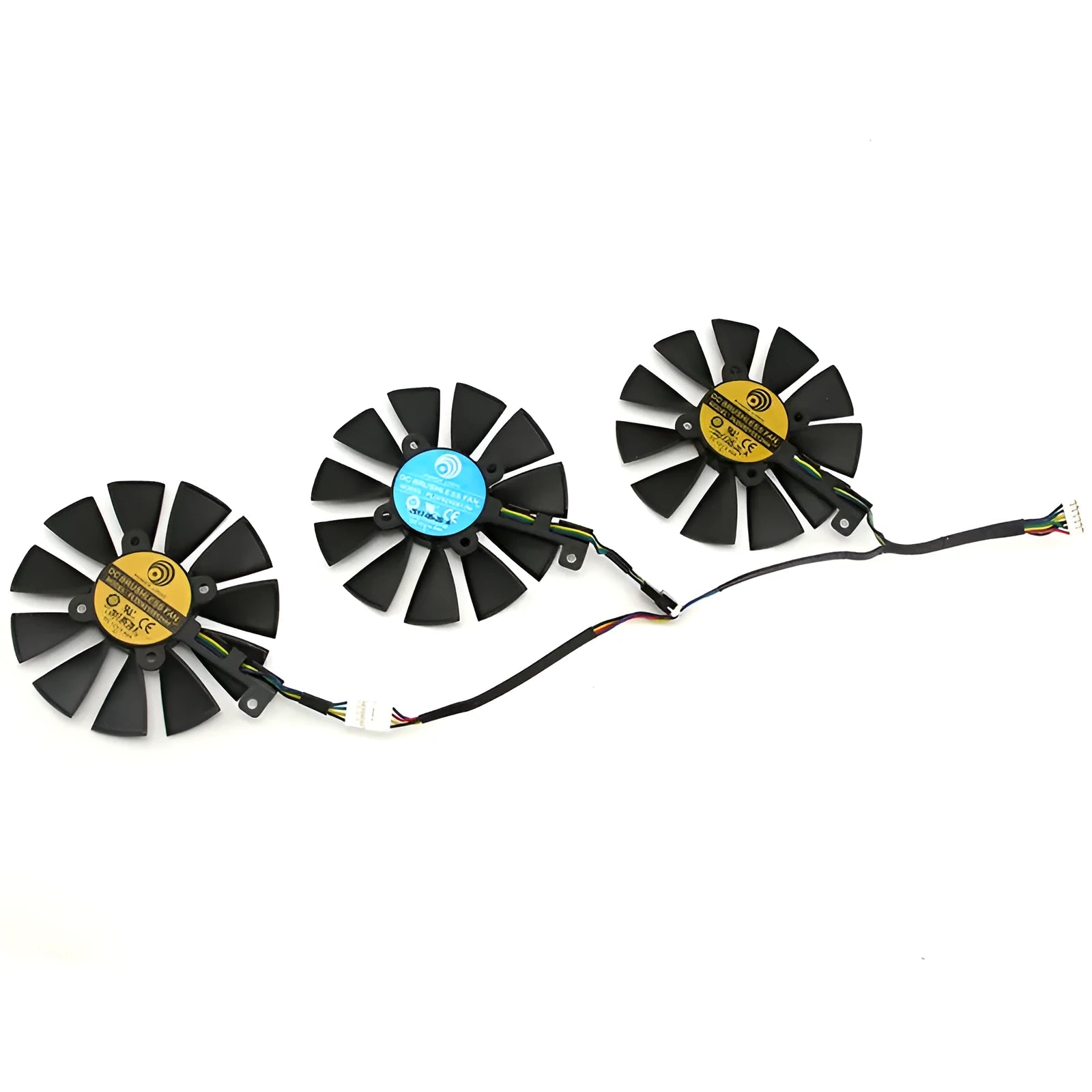

Power Logic PLD09210S12M Replacement Cooling Fan for ASUS ROG Strix Graphics Cards

This PLD09210S12M graphics card cooling fan from Power Logic serves as a functional replacement component for a comprehensive list of ASUS ROG Strix AMD Radeon and NVIDIA GeForce graphics cards. When the original cooling fan on your high-performance GPU fails or underperforms, this unit provides a compatible solution to help restore thermal management. It matches the physical specifications and electrical requirements needed to integrate with the heatsink assemblies on models such as the ROG Strix RX VEGA64, RX 580, GTX 1070 Ti, and GTX 1080 Ti. This detailed guide covers its specifications, compatibility, and practical considerations for a successful installation.

Specifications and Physical Build

The fan is built to precise measurements to ensure it fits within the existing cooling shroud of compatible graphics cards. Its construction follows standard component designs for this application, focusing on dimensional accuracy and electrical compatibility rather than aesthetic features.

Dimensions and Mounting

The fan unit itself measures approximately 87mm in length, 87mm in width, and 12mm in height. These dimensions are critical for a proper fit within the card's cooler assembly. The mounting holes are positioned with a centre-to-centre distance of 28mm, a common pattern for securing fans to heatsinks. Before purchase, users should verify that their specific graphics card model's cooler uses this 87mm x 87mm fan size and 28mm hole spacing to ensure compatibility.

Electrical Requirements and Connector

This cooling fan operates on a standard DC 12V supply and draws a current of 0.40 AMP. It is equipped with a 4-pin header power connector, which is the prevalent interface for chassis and cooling fans on modern motherboards and many graphics cards. This connector allows for potential pulse-width modulation (PWM) speed control if supported by the host graphics card or motherboard's fan header, though control functionality depends entirely on the source hardware's capabilities.

Compatibility and Model Support

The product listing specifies a wide array of ASUS ROG Strix graphics card models for which this fan is intended as a replacement. It is crucial to match your exact card model to the provided list to confirm suitability.

Supported AMD Radeon Models

This fan is listed as compatible with several generations of ASUS ROG Strix Radeon cards. Key supported AMD models include the ROG Strix RX VEGA64 8GB, ROG Strix RX 480, and various ROG Strix RX 580 editions (such as the TOP 8G and standard 8G GAMING variants). It also lists compatibility with older STRIX R9 390, 390X, and R9 FURY DC3 models, indicating a design used across multiple GPU generations.

Supported NVIDIA GeForce Models

For NVIDIA users, the compatibility list covers numerous ASUS ROG Strix GeForce GTX models. This includes the GTX 10-series: GTX 1060 (6G), GTX 1070 (including DRAGON and standard editions), GTX 1070 Ti (Advanced and GAMING), GTX 1080, and GTX 1080 Ti. It also mentions the older STRIX-GTX980TI-DC3, showing application across different NVIDIA architectures. Users must verify their specific card's model number matches one on the list.

Practical Application and Value

This product addresses a specific need: replacing a failed or faulty cooling fan on a compatible graphics card without requiring a full cooler replacement or new GPU purchase.

Repair and Maintenance Use

The primary use case is repair and maintenance. For enthusiasts and users looking to extend the life of their graphics card, sourcing a direct-fit replacement fan can be a cost-effective solution compared to buying an aftermarket cooler or a new card. It allows for the restoration of the original cooling solution's intended airflow and noise profile, provided the heatsink itself is still in good condition.

Installation Considerations

Installation requires careful handling of PC components. The process involves removing the graphics card from the system, potentially disassembling the cooler shroud to access the old fan, and securely fitting the new unit. Success depends on the user's technical comfort with PC hardware. The value lies in the precise match of size, voltage, and connector, which simplifies the repair process for supported models where generic case fans would not fit or connect properly.
