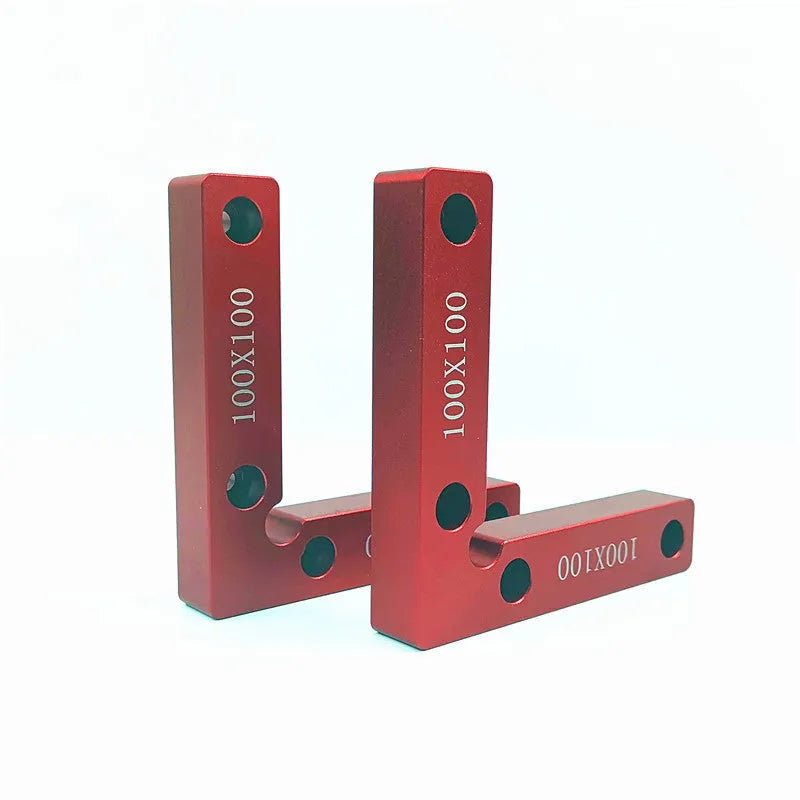

Aluminium Alloy 6061 Woodworking Right Angle Fixture Positioning Block for Jigsaws

For woodworkers and carpenters needing consistent, square results, this right angle positioning block offers a reliable mechanical solution. Manufactured from aluminium alloy 6061, it provides a rigid and lightweight base for clamping workpieces or guiding tools to a perfect 90-degree angle. Available in two distinct sizing configurations, it is designed to function as a dedicated fixing fixture, particularly for use with jigsaws, and incorporates a precise scale to remove guesswork from measurement and alignment. Its construction focuses on delivering accuracy and repeatability for a variety of cutting and assembly tasks in the workshop.

Features and Construction

This positioning block is engineered for functional precision in a workshop environment. Its design centres on providing a stable reference edge and clamping surface to achieve true right angles, a fundamental requirement in quality woodworking and carpentry.

Material and Build

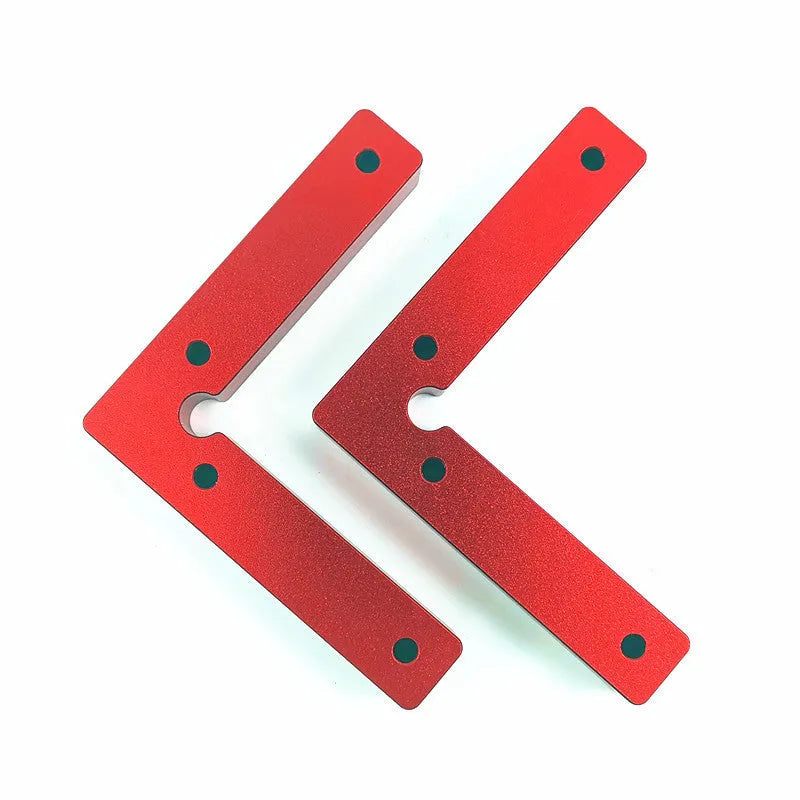

The block is fabricated from aluminium alloy 6061, a material chosen for its favourable strength-to-weight ratio. This makes the fixture solid enough to resist deflection under clamping pressure yet sufficiently lightweight for easy handling and repositioning on the workbench. The precision manufacturing and stated quality assurance processes contribute to its overall dimensional accuracy and reliable performance as a workshop aid.

Size and Practical Fit

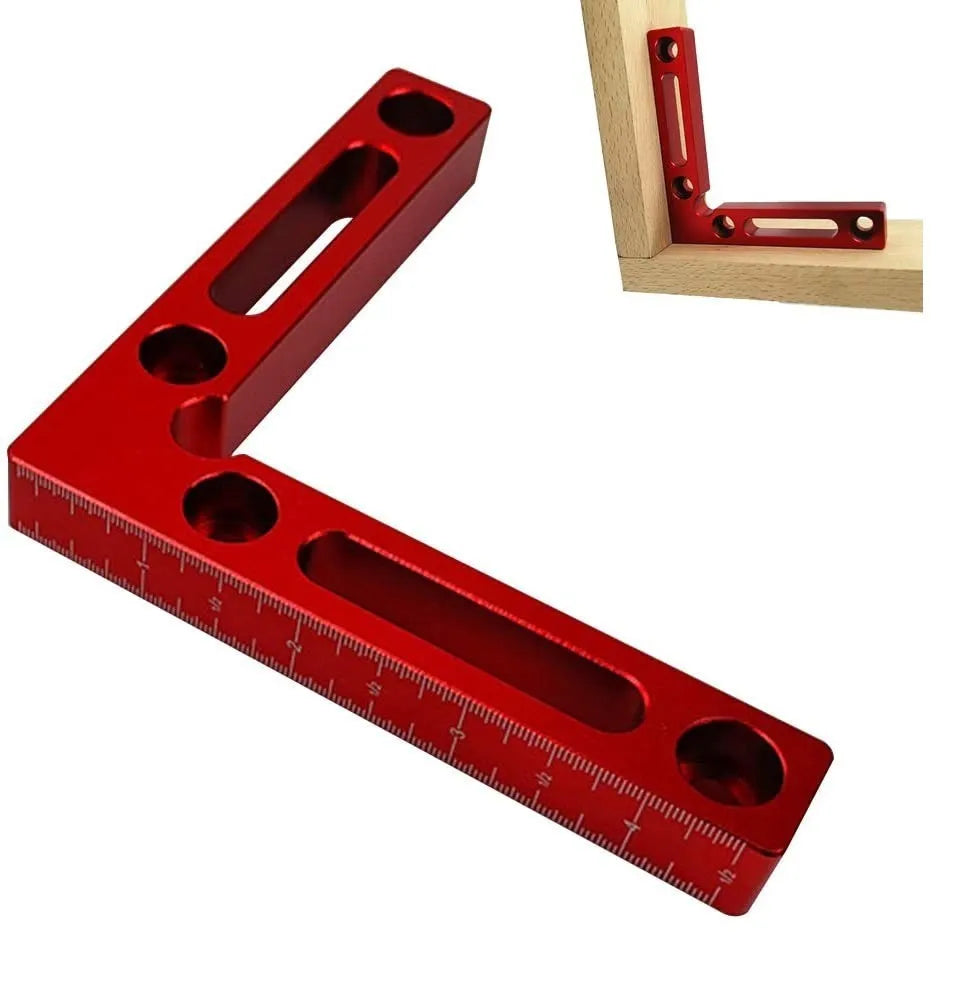

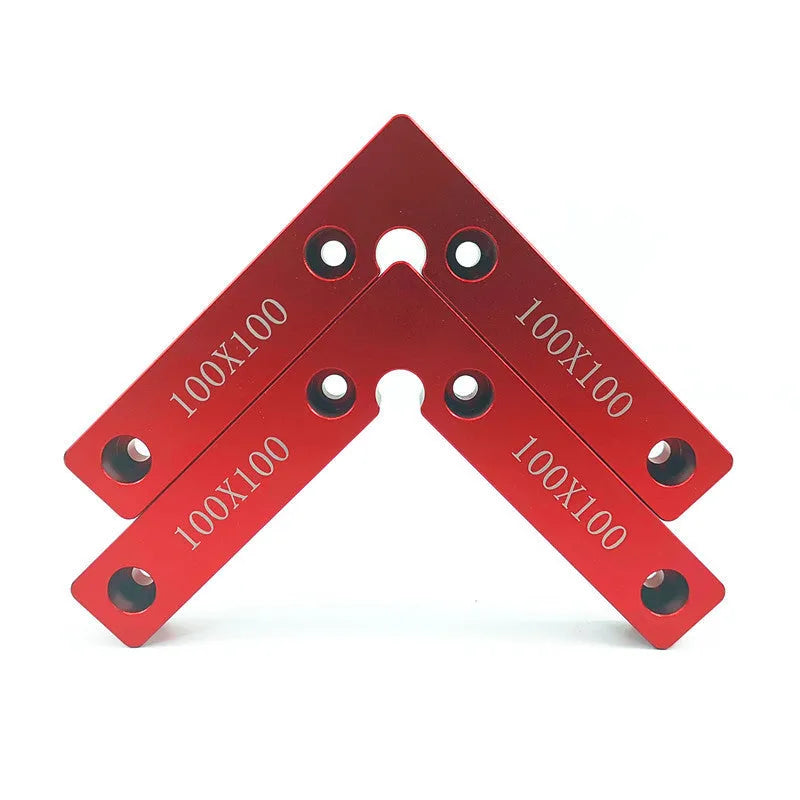

The product is offered in two specific right angle size variants to suit different project needs: a 100mm model and a 120mm model. The overall footprint of the block itself measures 40mm by 130mm by 210mm, providing a substantial base for stability. The integrated accurate scale on the fixture allows for convenient operation, enabling users to set precise distances from the reference edge without needing additional measuring tools during the clamping process.

Uses and Placement

This tool finds its primary application in scenarios demanding repeatable right-angle accuracy. It serves as an intermediary fixture, bridging the gap between a power tool and the workpiece to ensure consistent, square outcomes.

Event or Professional Use

In professional workshop settings or for serious DIY projects, this block acts as a dedicated accessory for power tools like jigsaws. By clamping it securely to a workpiece or worktable, it provides a guaranteed 90-degree guide fence for the saw's base plate, leading to straight, square cuts essential for joinery, box-making, or any construction requiring precise right angles. This eliminates the time-consuming process of manually checking and re-checking squareness for each cut.

Everyday Home Use

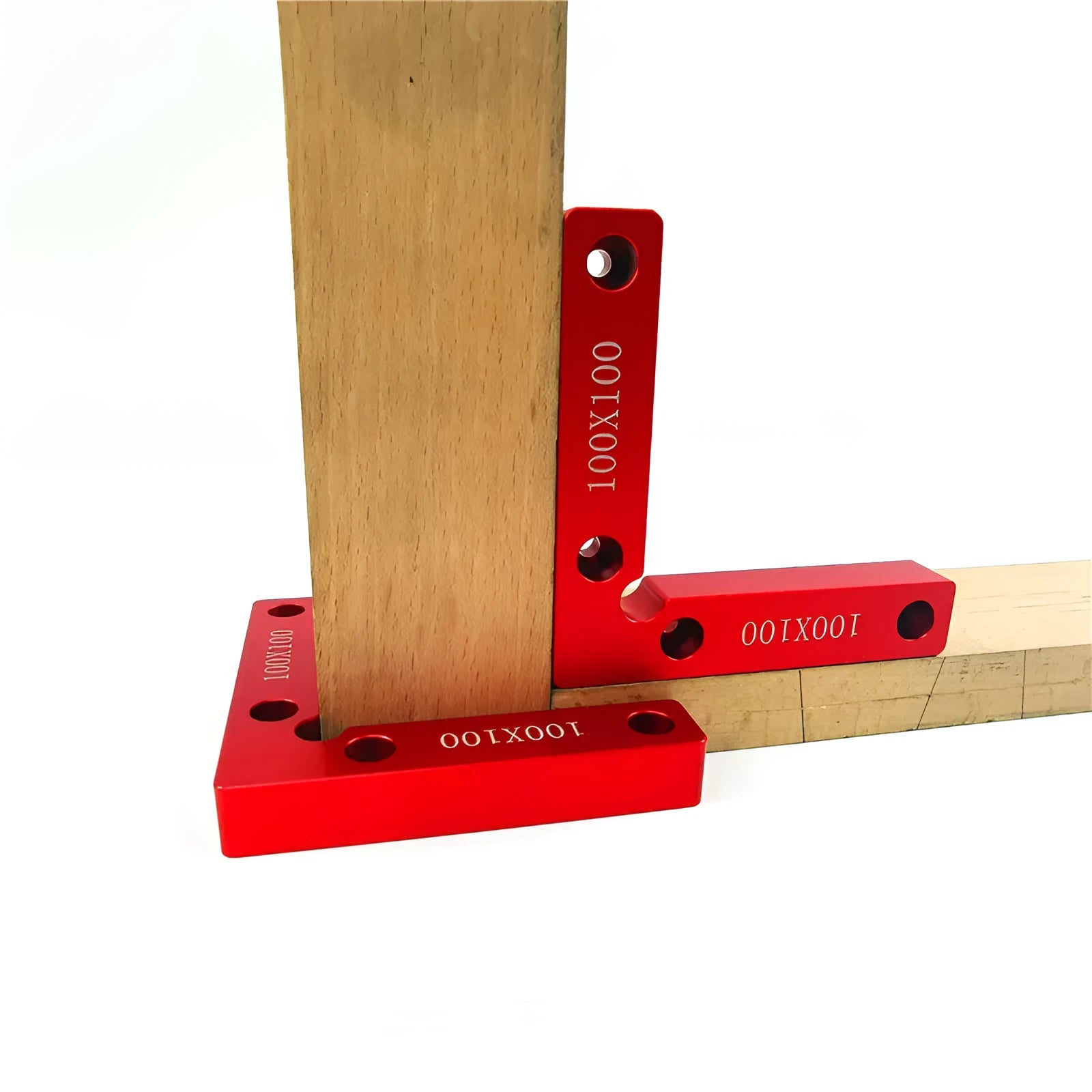

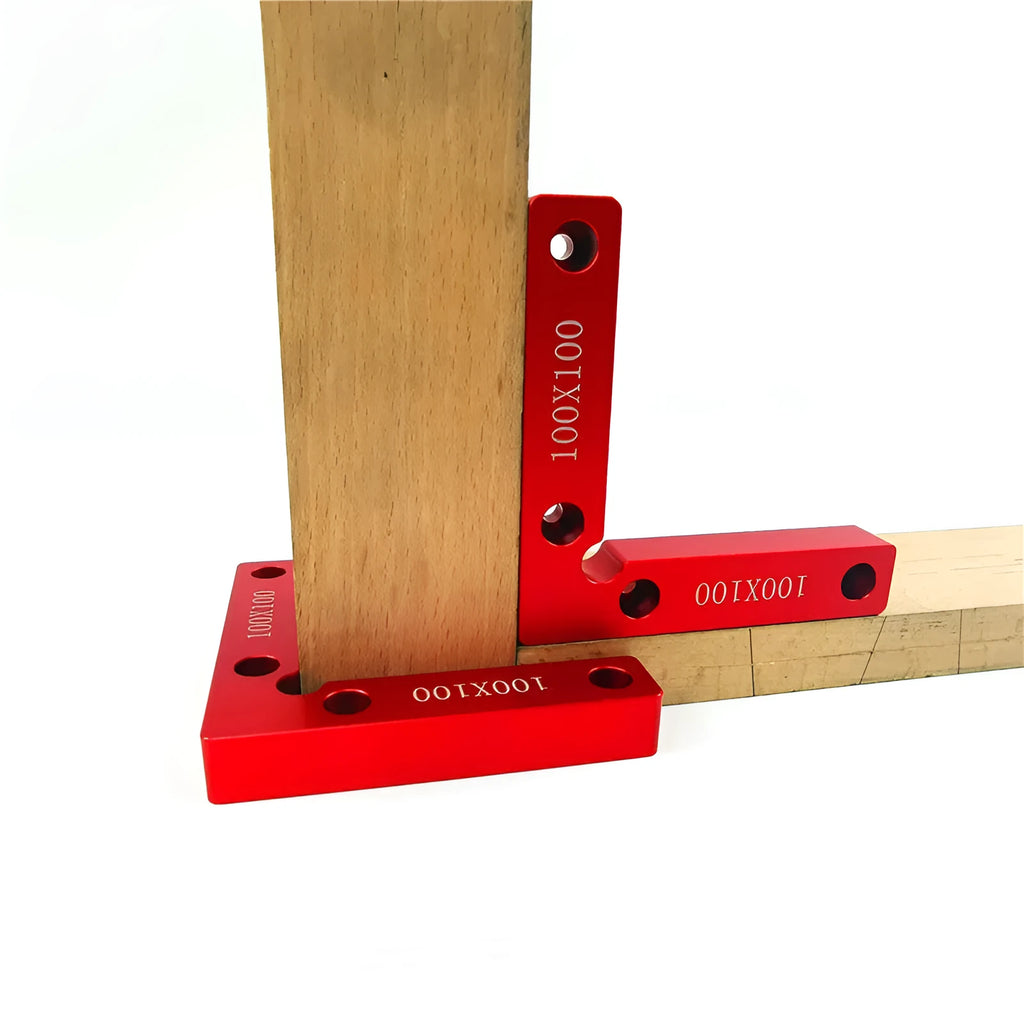

For the home workshop enthusiast, the block offers a simple way to upgrade cutting accuracy. Beyond use with jigsaws, it can serve as a general-purpose squaring aid for assembling frames, checking the squareness of cabinets, or as a setup block for router tables. Its clear scale also makes it useful for setting consistent setback distances when drilling holes or making repeated markings along an edge.

Benefits and Buying Value

The value of this positioning block lies in its ability to introduce machine-like precision to manual workshop processes. It addresses the common challenge of maintaining perfect square alignment during cutting and assembly tasks.

Reuse and Low Maintenance

As a solid metal tool, it is built for repeated use over time. The aluminium alloy construction is resistant to corrosion in a typical workshop environment and requires minimal upkeep; simply wiping it clean of sawdust after use is sufficient. Its functionality does not degrade with use, making it a long-term addition to a tool collection that supports accuracy in countless future projects.

Why Choose This Product

Choosing this specific block provides a focused solution for achieving 90-degree angles. The key differentiators are its dedicated design as a tool fixture, the choice between 100mm and 120mm sizes to match common workpiece dimensions, and the practical inclusion of a measurement scale directly on the tool. It offers a more reliable and efficient alternative to trying to square tools using makeshift blocks or constant measurement with a try square.
