TB6560 3A Stepper Motor Driver: Compact Control for Engraving and Placement Machines

The TB6560 stepper motor driver module delivers reliable motion control for demanding applications like engraving machines and placement equipment. Built around the Toshiba TB6560AHQ chip, this driver integrates essential protection features including low-voltage shutdown, over-temperature shutdown, and over-current protection circuits to safeguard operation. Its compact 50mm by 75mm by 35mm footprint allows for integration into space-constrained systems. Designed for two-phase, four-phase, four-wire, and six-wire stepper motors within the 42 and 57 size range and a 3A current limit, it provides precise control essential for accurate positioning and smooth movement in automated processes.

Features and Construction

This driver module combines specific components and design choices to offer stable performance for stepper motor control. Its construction prioritises signal integrity and thermal management to handle the demands of continuous operation in machinery.

Material and Build

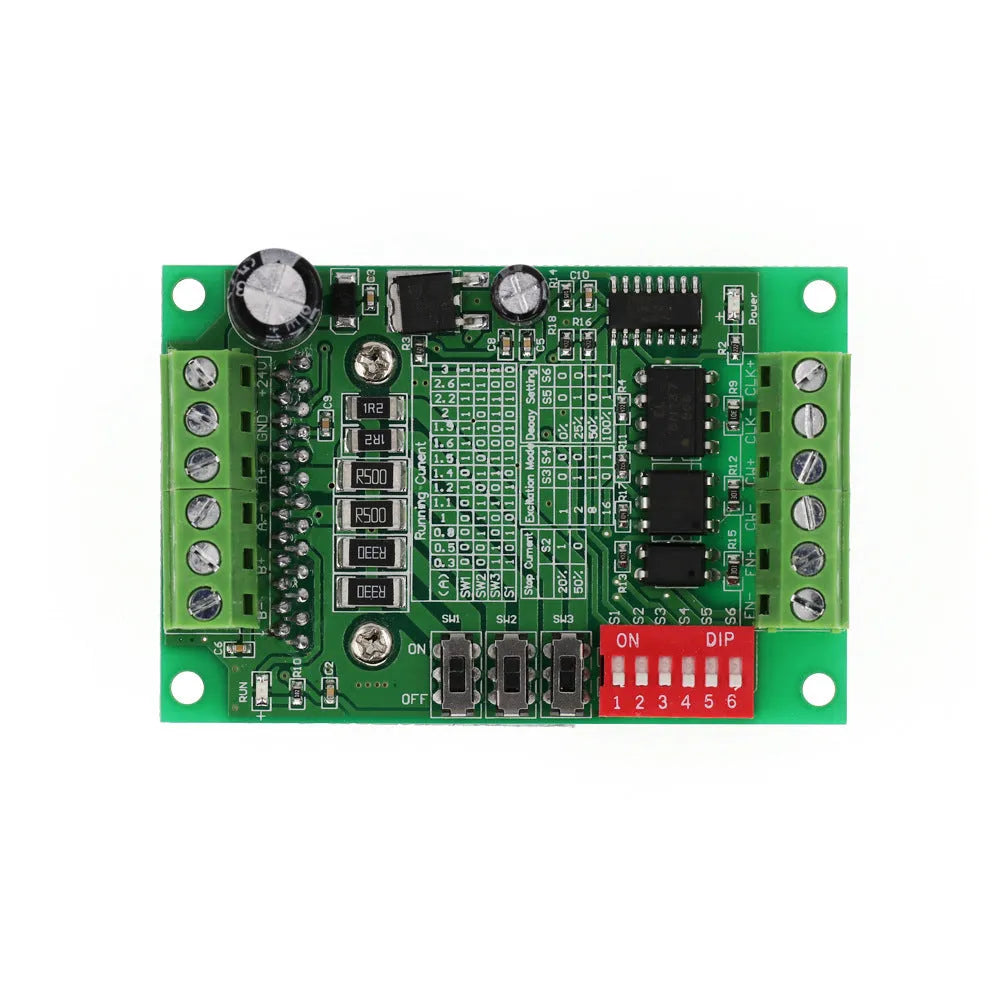

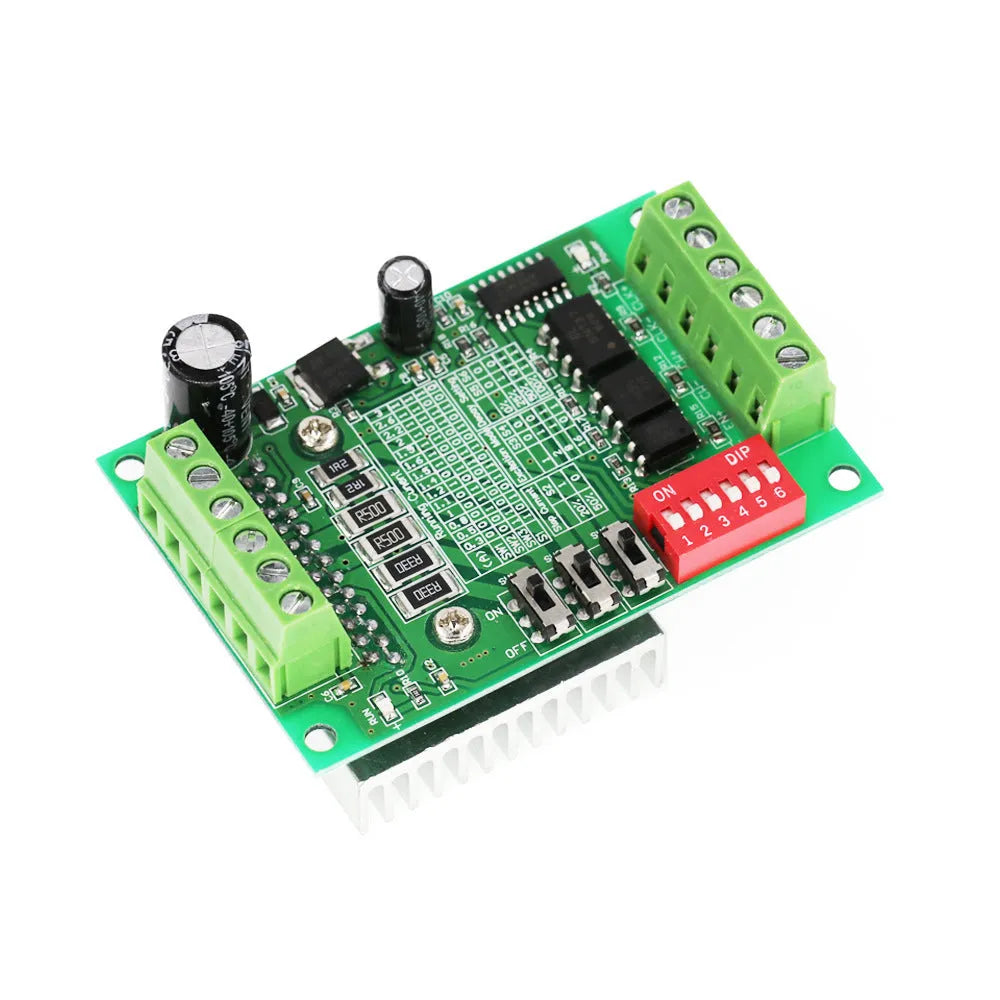

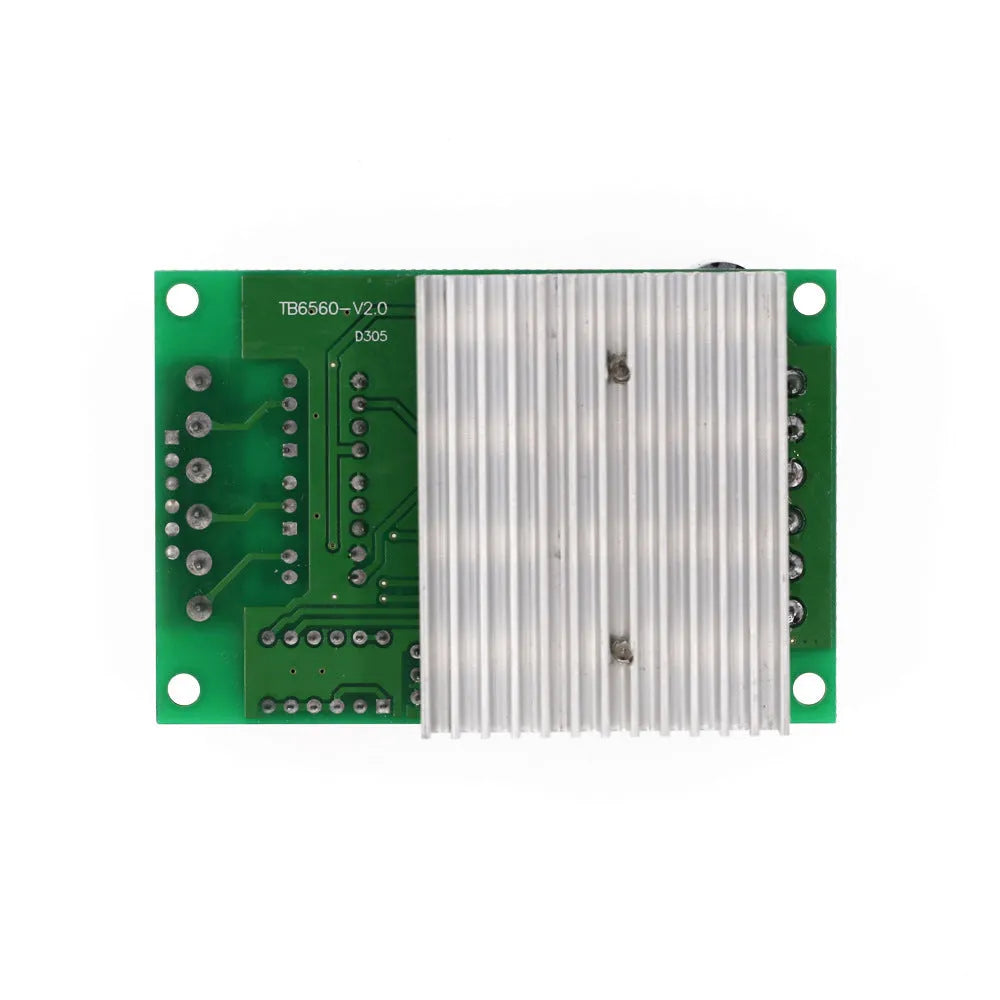

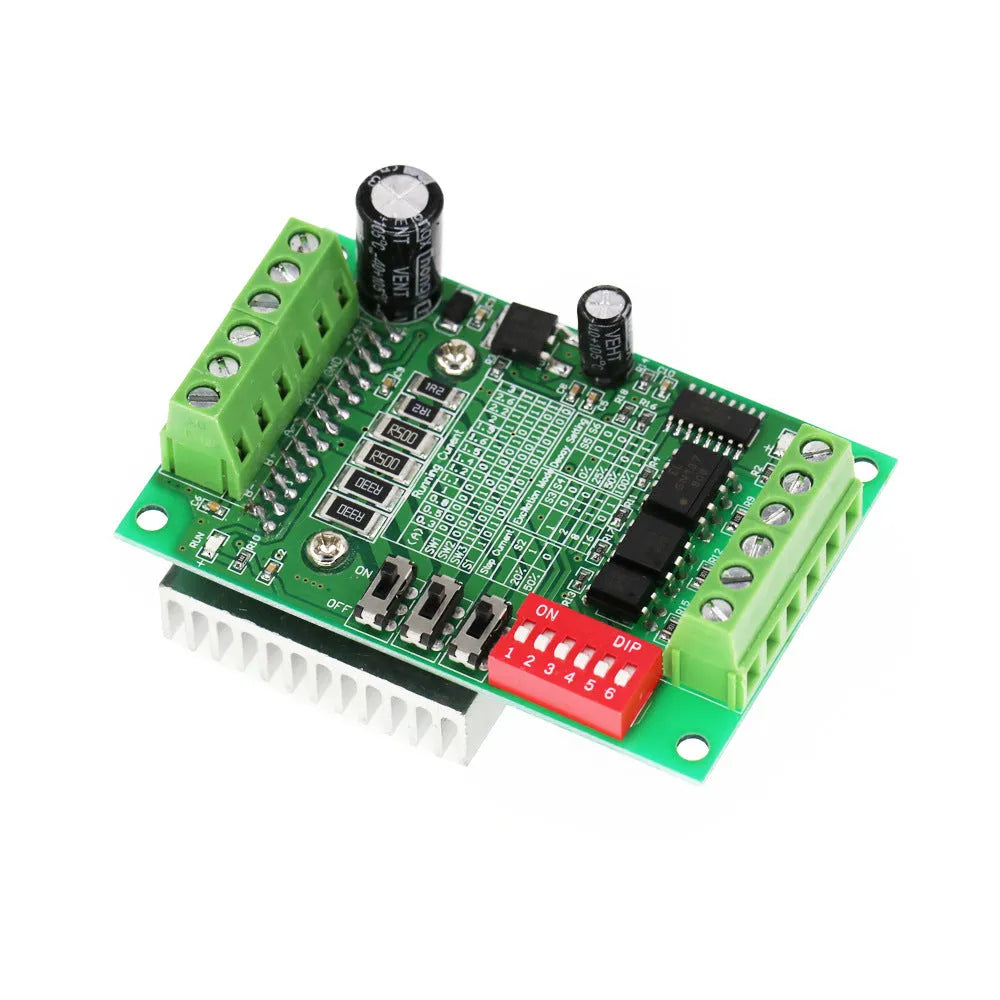

The core component is the Toshiba TB6560AHQ chip, a brand-new original integrated circuit that forms the heart of the driver's control logic and protection systems. Signal isolation is handled by a 6N137 high-speed optocoupler, which helps ensure step commands are transmitted accurately at high speeds without signal loss. The module is assembled on a standard PCB which includes printed settings instructions directly on the board, allowing for configuration without needing a separate manual. A key physical element is the thick, dense fin heatsink attached to manage heat dissipation during operation.

Size and Practical Fit

With external dimensions of 50mm in width, 75mm in length, and 35mm in height, this driver module is designed for compact installation. This size makes it suitable for retrofitting into existing machine enclosures or designing into new, space-efficient control boxes for engraving, CNC, or pick-and-place systems. The small form factor does not compromise its specified output capability, which is rated for a continuous 3A with a peak of 3.5A.

Uses and Placement

The driver's specifications make it suited for specific professional and hobbyist applications where precise stepper motor control is required. Understanding its intended use helps in selecting the right component for a project.

Event or Professional Use

This module has been applied in professional equipment such as engraving machines and placement machines (often referred to in PCB assembly). Its ability to provide up to 16 subdivisions (including 1/16 step) allows for very smooth and precise motor movement, which is critical for detailed engraving work or accurately placing components. The high-speed 6N137 optocoupler helps maintain step integrity during rapid movements, reducing the chance of missed steps that could ruin a workpiece or assembly.

Everyday Home Use

For DIY enthusiasts and makers, this driver can be used in homemade CNC routers, 3D printers, or automated plotting machines. The automatic half-flow function helps reduce power consumption and motor heating when the motor is stationary, which is beneficial for projects that may run for extended periods. The clear printed settings on the board simplify setup for users who may not have extensive technical documentation at hand.

Benefits and Buying Value

The value of this driver lies in its combination of specific features, protective circuitry, and physical design that address common needs in motor control projects.

Reuse and Low Maintenance

The integrated protection circuits within the TB6560AHQ chip—namely low-voltage shutdown, over-temperature shutdown, and over-current protection—are designed to prevent catastrophic failures that could render the module unusable. This inherent protection, coupled with the effective heatsink, supports reliable, long-term operation. The module's design, with settings printed on the board, means it remains straightforward to configure and reuse across different projects or after maintenance periods without losing reference material.

Why Choose This Product

This driver module offers a focused set of capabilities for controlling specific stepper motors (up to size 57 and within 3A) with a high degree of precision due to its 16-step subdivision. The inclusion of the Toshiba chip with its protection features provides a foundation for stable operation, while the compact size offers installation flexibility. It is a component built for a clear purpose: reliable control in machines like engravers and placers, as evidenced by its stated applications.
