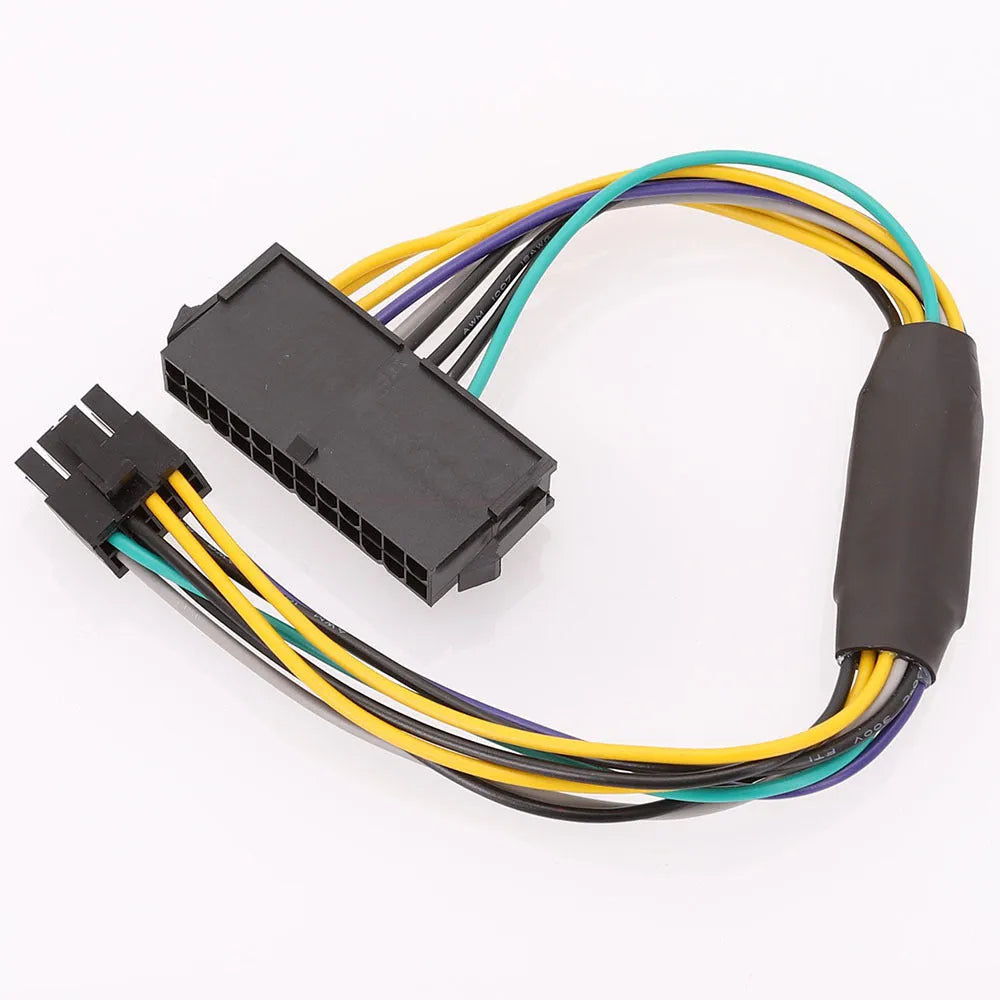

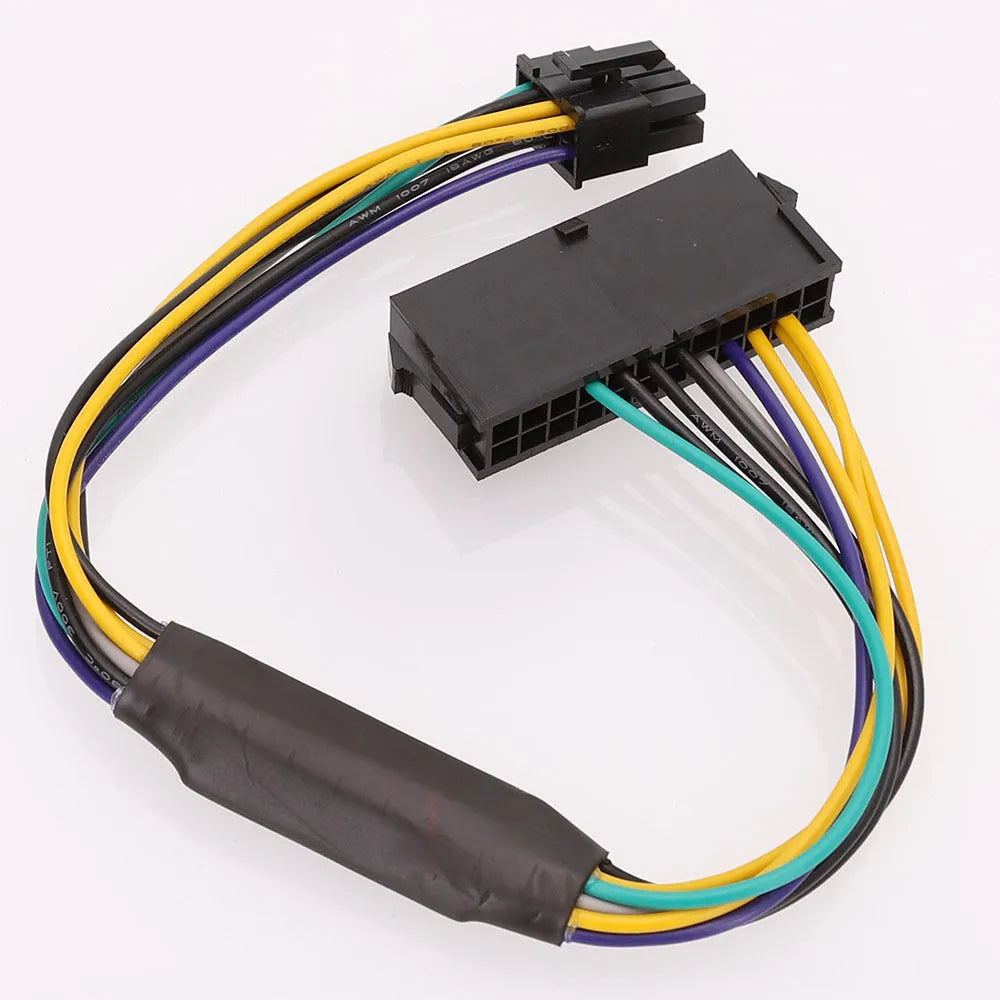

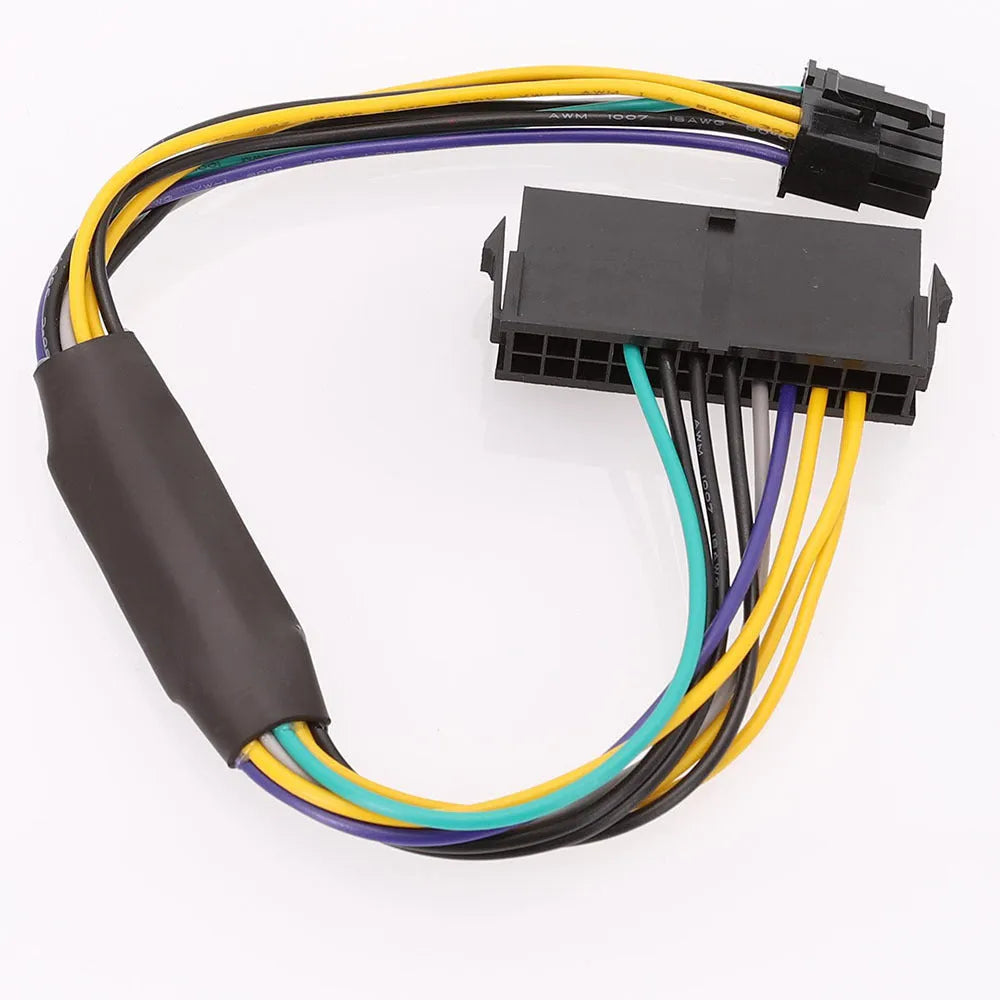

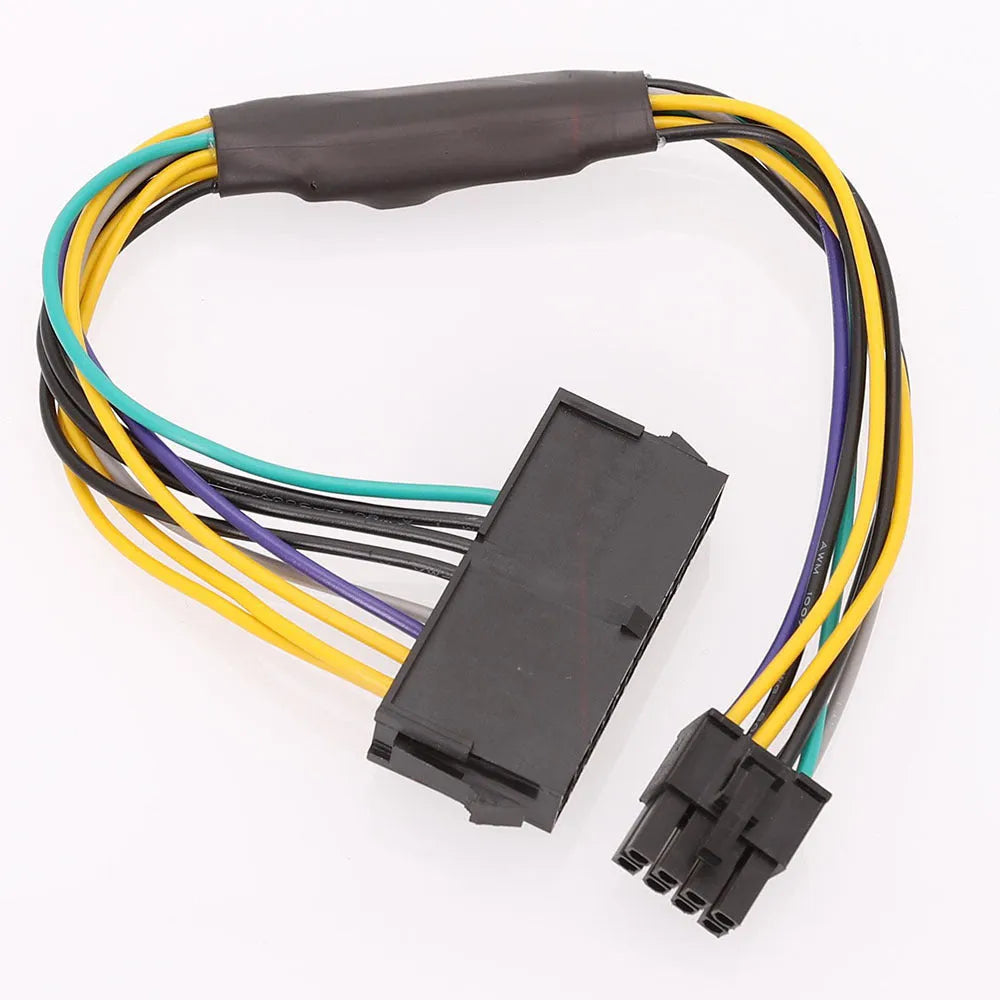

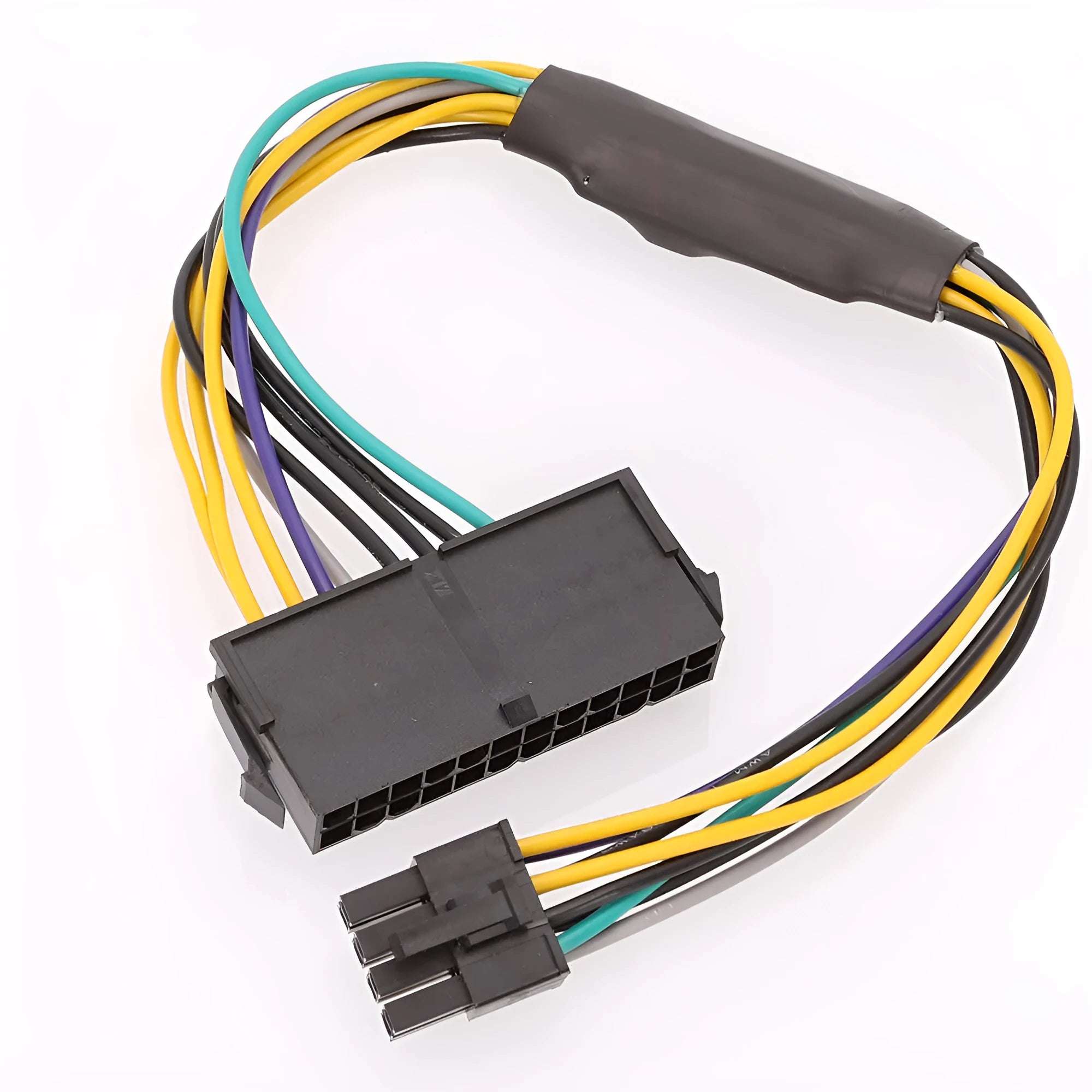

DELL Optiplex ATX 24P to 8P Power Adapter Cable: 30cm All-Copper Wire for 3020, 7020, 9020 Models

Upgrading or repairing a DELL Optiplex small-form-factor desktop, such as the 3020, 7020, 9020, or T1700, often encounters a specific hurdle: the proprietary motherboard power connector. This 30cm adapter cable provides a direct bridge between a standard, widely available ATX power supply and your DELL system's motherboard. It converts the power supply's 24-pin ATX output to the 8-pin header found on compatible DELL boards, bypassing the need for the original, often hard-to-replace, DELL power unit. This practical solution is designed for users who need to install a standard ATX PSU, whether for an upgrade to higher wattage, a repair, or a custom build within a DELL chassis.

Features and Construction

This cable's design centres on providing a reliable, electrically sound connection for a critical system component. Its construction and specifications are tailored to ensure compatibility and safe operation with high-performance power supplies.

Material and Build

The cable is manufactured using all-copper tinned wire, a choice that offers good conductivity and resistance to corrosion. The specific wire gauge used is 18AWG positive standard wire, featuring a 0.18x34 copper core. This build is explicitly stated to support high-power power supplies, with a noted capability for units up to 1000W. The tinning on the copper helps protect the strands from oxidation, which can be beneficial for long-term connection stability inside a computer chassis.

Size and Practical Fit

With a total length of 30cm, this adapter cable provides enough reach to comfortably route between the power supply and motherboard within a typical small-form-factor or desktop tower chassis. This length aims to offer flexibility for cable management without excessive slack. The connectors are keyed to match the standard ATX 24-pin and the DELL-specific 8-pin motherboard header, ensuring a secure physical connection when installed correctly.

Uses and Placement

The primary application for this cable is enabling standard ATX power supplies to work with specific DELL desktop systems that were designed for proprietary power units. It serves distinct scenarios for both troubleshooting and system enhancement.

Event or Professional Use

For IT technicians, system builders, or repair shops, this cable is a valuable tool for servicing DELL Optiplex models. It allows for quick testing of these systems with a standard bench power supply, aiding in diagnostics when the original DELL PSU is suspected of failure. It also facilitates repairs by enabling the installation of a replacement ATX power supply, which may be more readily available or cost-effective than sourcing an original DELL unit, getting a critical workstation back into operation efficiently.

Everyday Home Use

For the home user or hobbyist with a DELL Optiplex, this adapter opens the door to upgrades. If you're looking to install a more powerful graphics card or additional components that demand more wattage than the stock power supply can provide, this cable allows you to install a higher-capacity standard ATX unit. It transforms a limited OEM system into a more flexible platform for gradual upgrades, extending the useful life of the hardware without being constrained by its original power design.

Benefits and Buying Value

The value of this product lies in its specificity and the practical problem it solves. It converts a common point of incompatibility into a simple connection, focusing on documented compatibility and straightforward application.

Reuse and Low Maintenance

By enabling the use of standard ATX power supplies, this adapter promotes hardware reuse. Instead of discarding a DELL chassis because its proprietary PSU failed, you can install a new, standard unit. Standard ATX power supplies are widely available across many brands and retailers, simplifying future replacements or upgrades. The cable itself, with its all-copper tinned construction, is designed for durability as part of a permanent or semi-permanent installation within the computer.

Why Choose This Product

This cable is chosen for its confirmed compatibility with listed DELL Optiplex models and motherboard chipsets (H61, H81, Q77, Q87, B75, A75). Its specification to support up to 1000W power supplies makes it suitable for more demanding upgrades. The 30cm length is practical for chassis cable routing. Crucially, it addresses a well-known compatibility issue in the DELL Optiplex ecosystem with a single, dedicated adapter, saving the user from needing to modify connectors or seek out rare proprietary parts.
