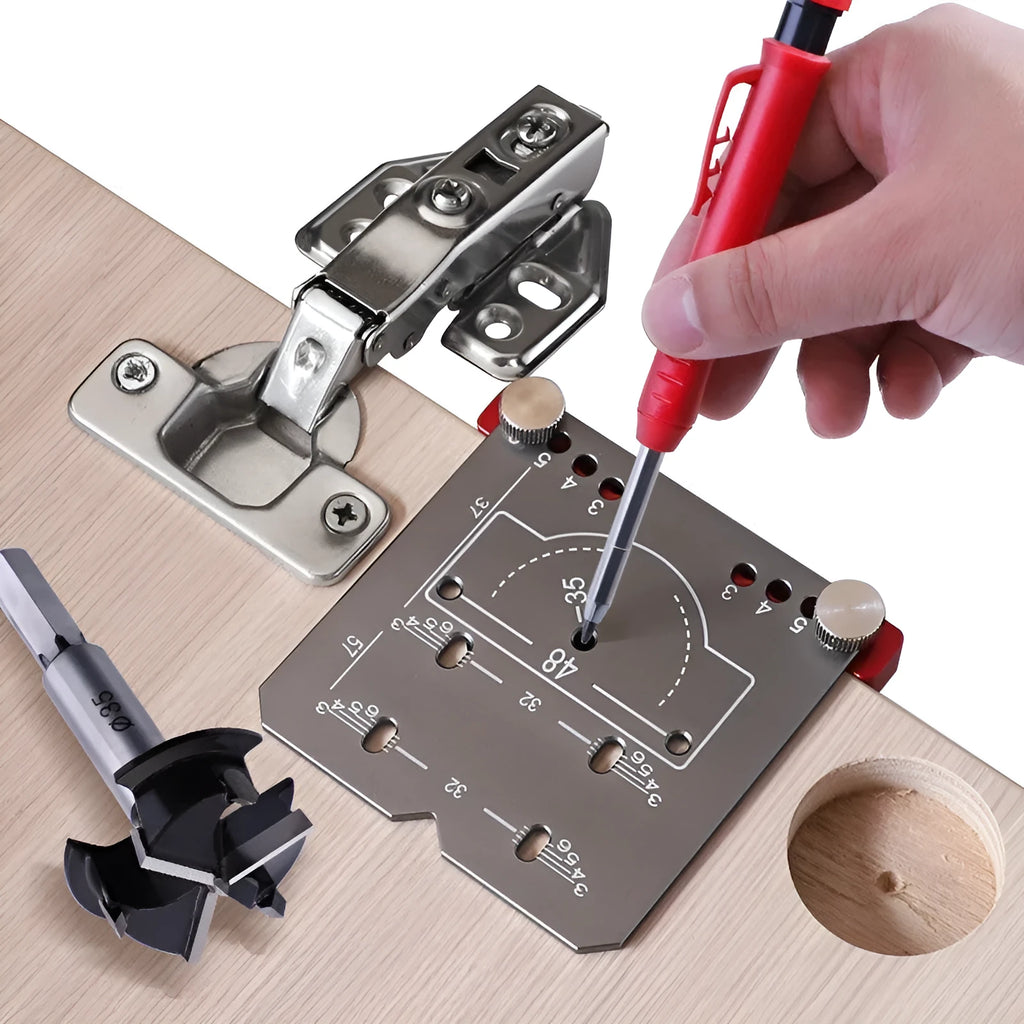

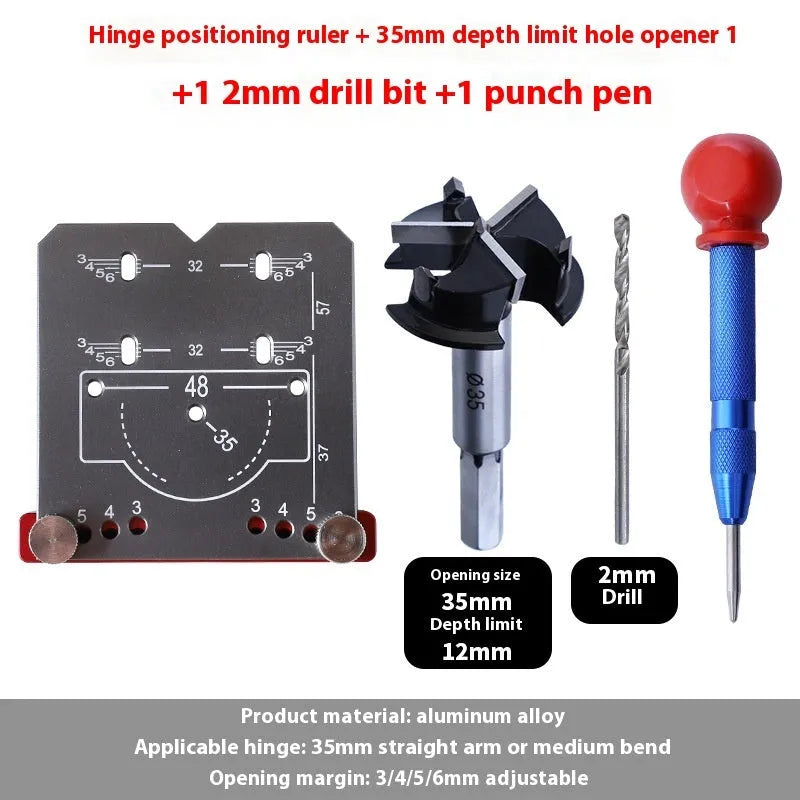

35mm Hinge Punch Locator Tool: Adjustable Margin Ruler for Cabinet and Door Installation

Installing cabinet door hinges requires precision to ensure smooth operation and a professional finish. This hinge punch locator tool is designed as a practical jig for DIY enthusiasts and home improvers tackling projects involving wardrobes, kitchen units, or other furniture with doors. It specifically accommodates 35mm extended arm and middle bend hinges, which are common in many household cabinets. The tool's primary function is to eliminate guesswork by providing a measurable, repeatable method for marking hinge hole positions, supporting a more efficient and accurate installation process compared to manual measuring and marking.

Features and Construction

This hinge locating ruler combines specific materials and adjustable features to fulfil its role as a installation aid. The construction focuses on providing a stable guide for marking and a durable component for creating pilot marks.

Material and Build

The main body of the locating ruler is made from aluminium alloy. This material choice contributes to a tool that is rigid enough to serve as a reliable guide during use. The integrated tapper component features a blade made from a hard alloy. This blade has undergone a high-temperature heat treatment process, a detail that relates to achieving a high degree of hardness. The source text indicates this treatment supports the blade's sharpness and wear-resistant properties, which are relevant for its function of marking wood without rapid dulling.

Size and Practical Fit

The tool is engineered for a specific hinge type: the 35mm extended arm or middle bend hinge. This defines its core application range. Its key operational feature is the adjustable margin setting. The ruler can be set to create hinge hole positions at 3mm, 4mm, 5mm, or 6mm from the door edge. This adjustability allows users to match the installation requirements of different cabinet designs or hinge models, providing a single tool for multiple common setback distances.

Uses and Placement

The locator is intended for hinge installation tasks in a home DIY context. It translates technical requirements into a simpler, more reliable manual process.

Event or Professional Use

While suited for home use, the tool's design—with its specific material specs and adjustable precision—supports tasks that benefit from consistency. A user assembling multiple cabinets or installing hinges on several wardrobe doors would find value in the repeatable measurements it provides. The hard alloy blade's noted wear resistance is a practical benefit in scenarios involving marking multiple positions, as it helps maintain marking clarity throughout a project.

Everyday Home Use

For the typical DIY project, such as fitting new kitchen cabinet doors or building a wardrobe, this tool simplifies a critical step. It removes the need for complex calculations or careful ruler placement for each hinge. The user can set the desired margin once, clamp or hold the jig in place, and use it to mark all hinge locations on a door consistently. This can help reduce errors that might lead to misaligned doors or poorly functioning hinges.

Benefits and Buying Value

The value of this product lies in its focused functionality and the practical advantages derived from its stated specifications.

Reuse and Low Maintenance

As a dedicated jig tool, it is designed for reuse across multiple projects. The aluminium alloy frame and the wear-resistant hard alloy blade contribute to its potential for longevity in a home workshop. Maintenance is straightforward, primarily involving keeping the tool clean from sawdust and debris to ensure smooth adjustment of the margin settings and clear visibility of markings.

Why Choose This Product

This hinge locator offers a concrete solution for a specific, measurement-sensitive task in woodworking and furniture assembly. Its value comes from combining an adjustable margin gauge (3-6mm) with a hard-marking blade in a single tool designed for 35mm hinges. It provides a factual, mechanical advantage over freehand measurement by improving accuracy and consistency, which are key to successful hinge installation. The tool is a targeted investment for anyone regularly working on cabinet or furniture projects where hinge fitting is required.
